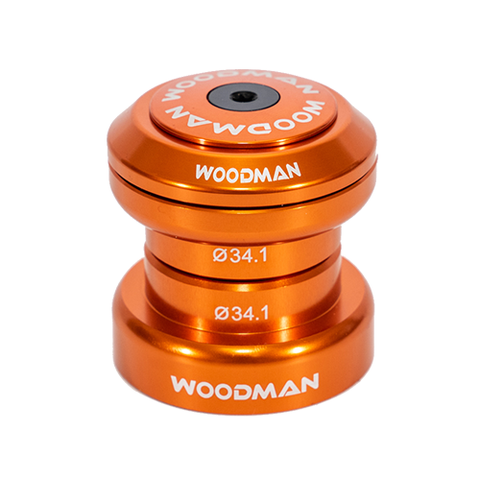

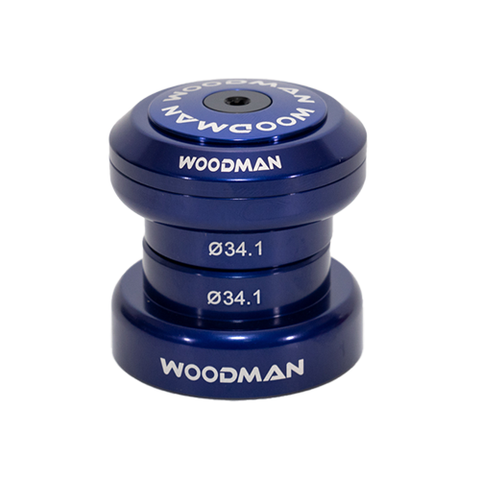

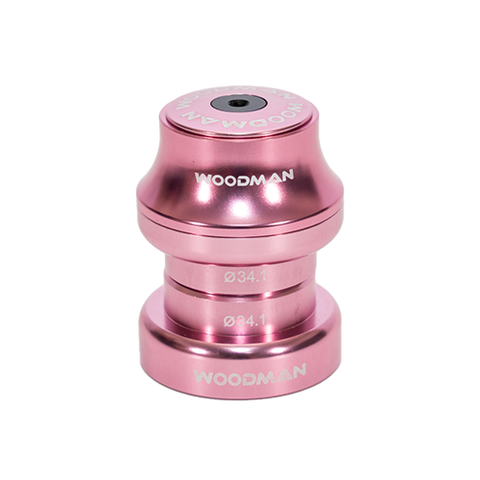

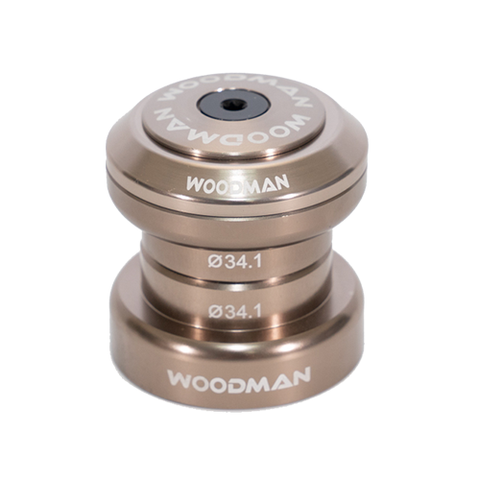

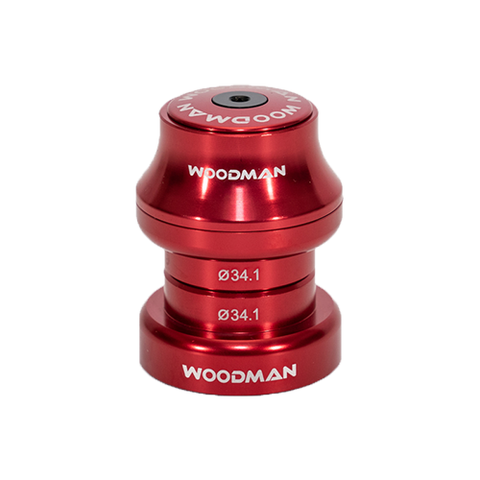

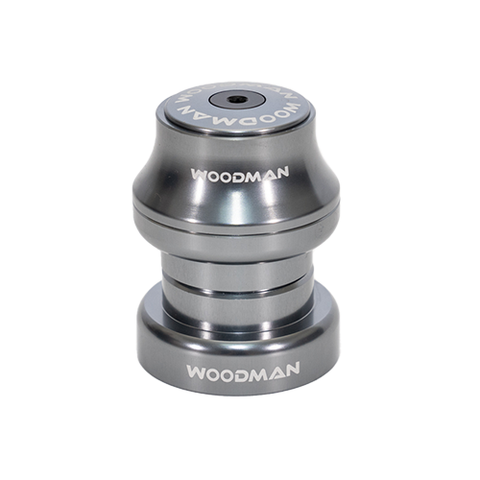

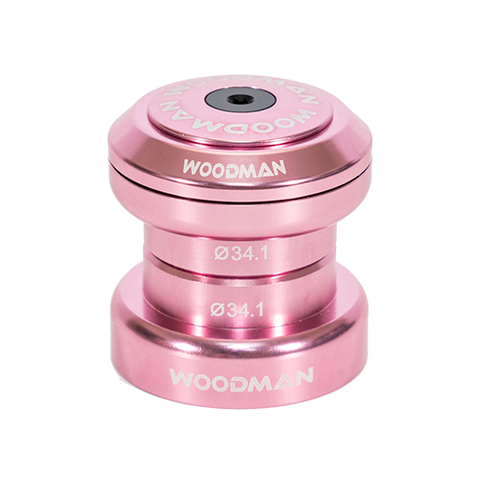

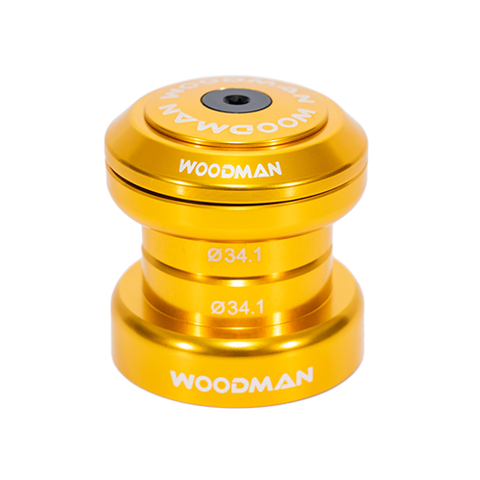

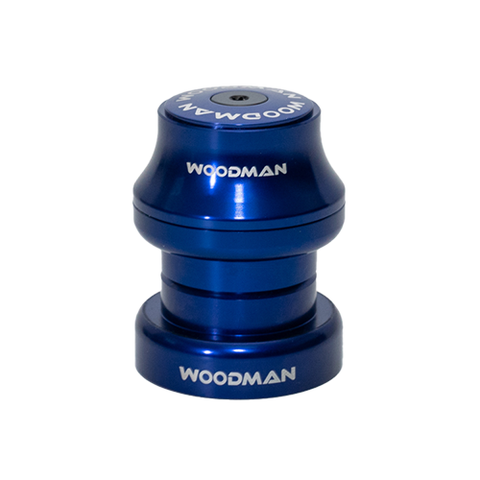

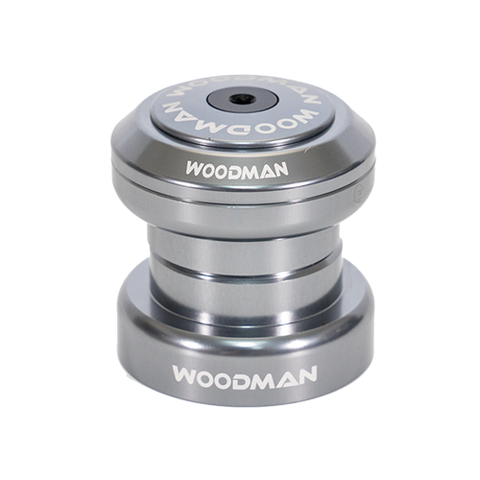

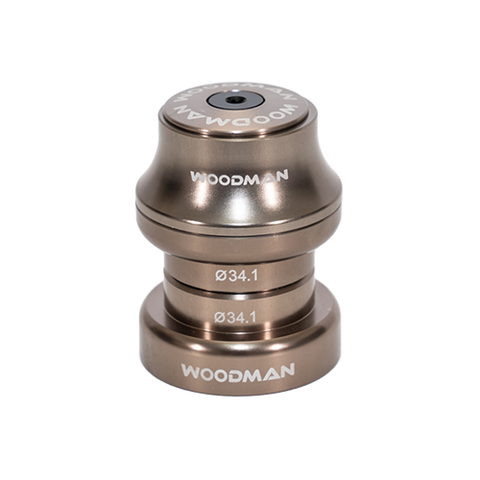

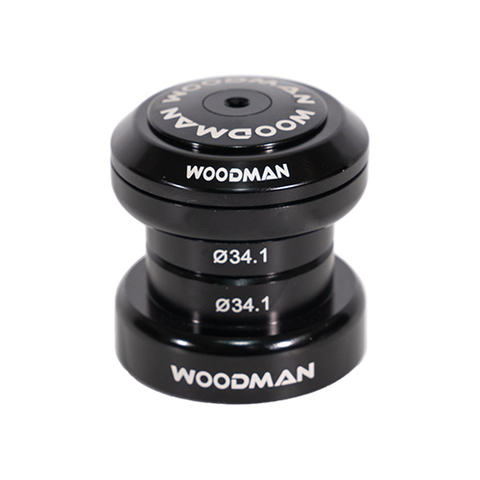

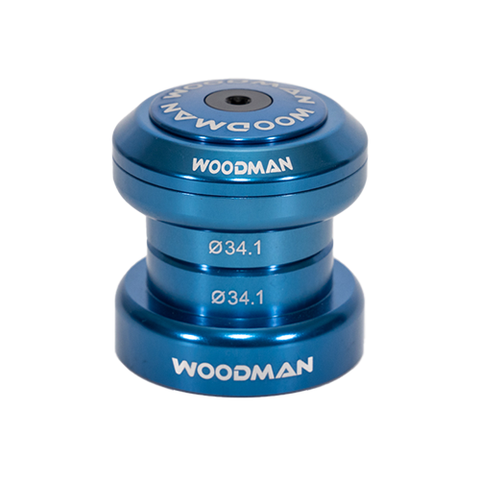

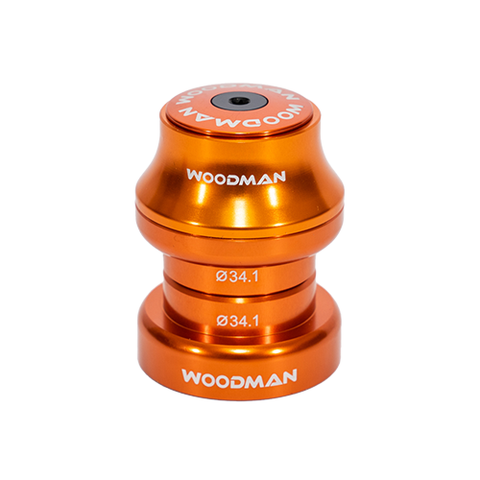

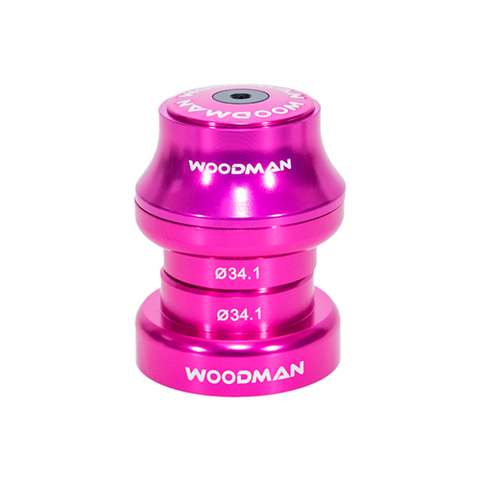

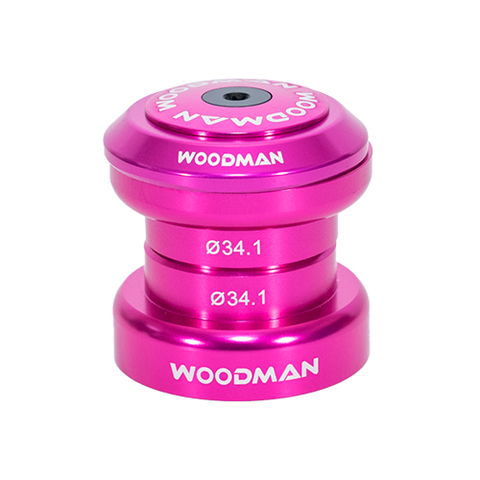

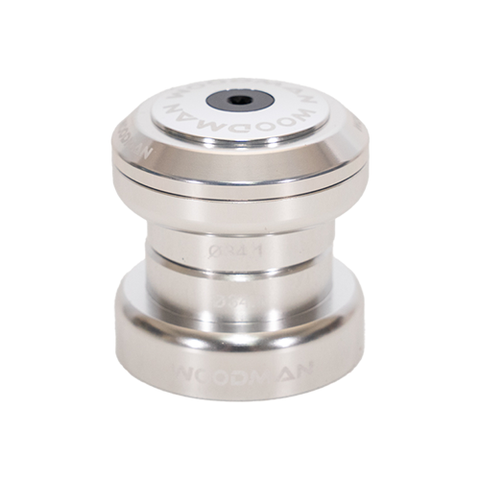

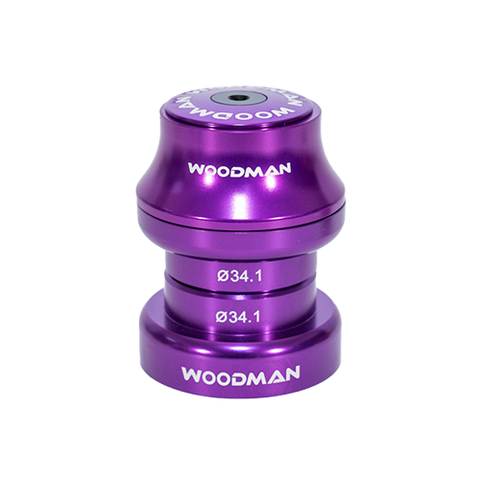

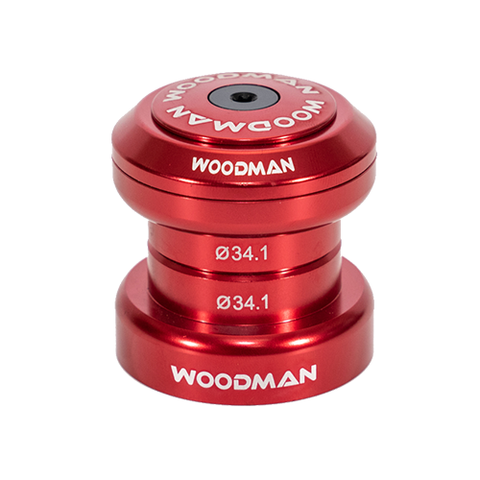

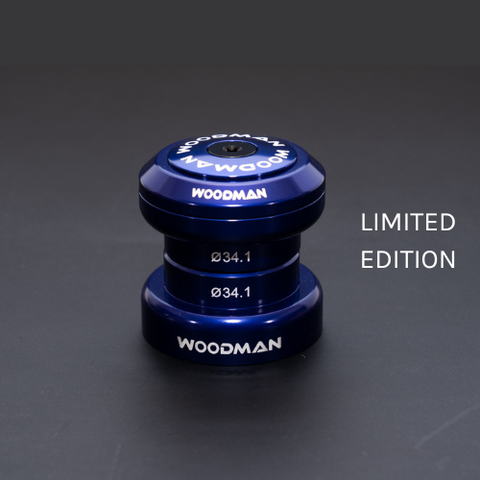

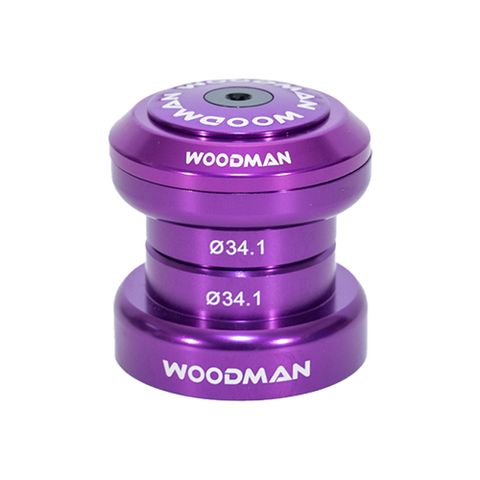

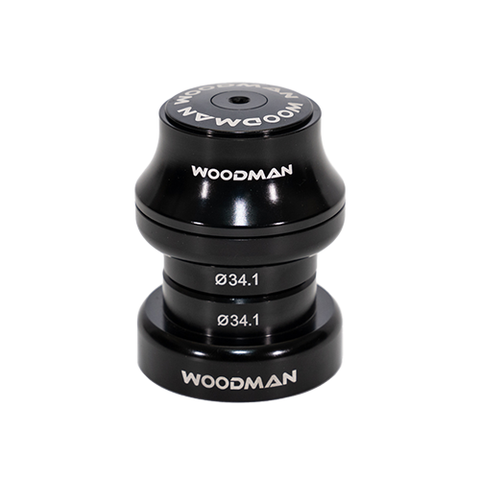

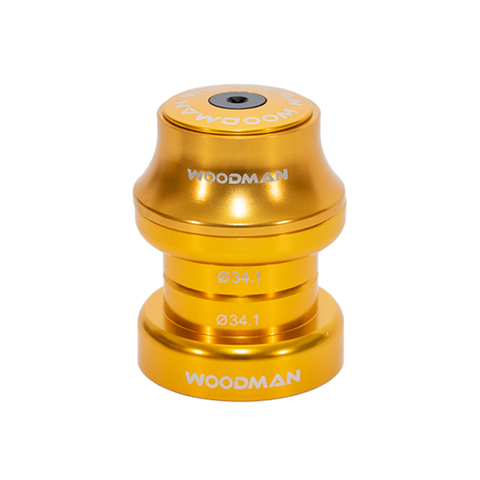

WOOdman Axis EC34/EC34 Headset
The Woodman EC34/EC34 1 1/8" headset is specifically designed to fit a 34mm external headtube with 1-1/8" steerer forks and available in 7mm and 20mm dust cover options.
MATERIALS: CNC-machined 6061 T6 Aluminum, durable sealed bearings.
COLORS: Black, Gold, Red, Blue, Pink, Titan, Pewter, Orange, Purple, Hot Pink
EC34/EC34 HEADSET FEATURES:
Classic 1 1/8" external headset(34mm headtube) for 1-1/8" straight fork.
- S.H.I.S Top：EC34/28.6
- S.H.I.S Bottom：EC34/30
- Fork Steerer：Straight 1 1/8" fork
- Top Bearing：WOOdman C45°/45° (42 x 30.6 x 6.5mm)
- Bottom Bearing：WOOdman C45°/45° (42 x 30.6 x 6.5mm)
- Stack Height：Top 15.33mm / Bottom 12.33mm
-
WOOdman HEADSET TECHNOLOGY
Designed for high performance across extreme use and lightweight riding.
FL CAP
FL Cap is a WOOdman lightweight design. The latest Torx screw is made of 7075 aluminum, which is lighter and has better torsinal strength than Haxagon socket screws.
Dust Cover
20mm Dust Cover Advantages:
- Raises the stem height
- Eliminates the need for multiple spacers
- Looks better and weights less
- Less stress on the steerer tube
SP Hight Adjustment Plate
Because all frames are not created equal, and paint thickness may vary, the dimension of the headtube may be different from frame to frame. In order to keep the smallest possible gap between the top of the head tube and the headset cap, which guarantees the best headset sealing possible, we designed the SP Height Adjustment Plate. By adding or removing SP plates during headset cap assembly, you can adjust the gap’s height. Each WOOdman SP headset comes with three aluminum spacers.
Position Specific Bearings
For the bike headset, the key and important element is the bearings! WOOdman bearings are sealed, with a retainer design for the top bearing and a full-ball and full-grease design for the bottom bearing. This meticulous design not only extends the lifespan of our bearings but also enhances their durability, enabling them to withstand even the most extreme riding conditions. As a result, they are the ideal choice for upgrading the headset bearing on road bikes or MTBs.
SGC Fork Crown Race
One of the key features of the SPG series is the SGC fork crown race- it can be assembled or removed without any tools.
Our patent SGC crown race allows it to be installed on the fork crown without tools, while the reinforced steel ring prevents deformation during the process. We also added a seal to ensure the least amount of maintenance possible.
