SUNCORD 406 Carbon Wide-Body 4-Spoke Bicycle Wheelset

🔥 Designed specifically for wider 406 tires, this SUNCORD carbon 4-spoke wheelset combines aggressive styling, lightweight performance, and improved ride comfort.

With a 42 mm rim depth, 24 mm internal width, and 31 mm external width, the wide-body rim profile provides better tire support and helps improve shock absorption. It gives the wheelset a bold, muscular appearance while keeping the ride comfortable rather than overly stiff.

✅ Tubeless Ready
Supports tubeless tire setups.

✅ Compatible Tire Width:
Suitable for 1.25" to 2.1" tires.
Please confirm frame and fork clearance before installation.

✅ Lightweight Construction:
Actual wheelset weight is approximately 953 g.

Despite the wide rim profile, the wheelset remains very lightweight. Based on our comparison, it is more than 200 g lighter than some other 4-spoke wheelsets on the market, making it a great option for riders looking for both style and performance.

Hub Options

🔧 Center Lock hub configurations available:

1. Front 78 mm / Rear 142 mm – 12 mm Thru Axle
Suitable for newer BIRDY models.

2. Front 74 mm / Rear 142 mm – 12 mm Thru Axle

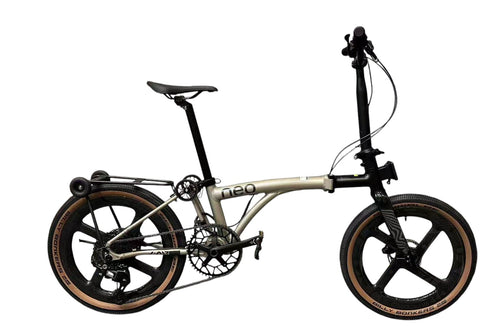

Suitable for JAVA NEO 406.

3. Front 100 mm / Rear 142 mm – 12 mm Thru Axle
Suitable for Brompton G Line.

4. Front 100 mm / Rear 135 mm – Quick Release
Suitable for compatible disc-brake folding bikes and mini-velo bikes with matching dropout spacing.

📌 Important Note for BIRDY:
BIRDY uses a special front hub specification. Please select the dedicated BIRDY version. The standard 100 mm front hub version is not directly compatible.

Specifications

• Wheel Size: 406
• Material: Carbon Fiber
• Design: 4-Spoke
• Rim Depth: 42 mm
• Internal Rim Width: 24 mm
• External Rim Width: 31 mm
• Tubeless Ready: Yes
• Recommended Tire Width: 1.25"–2.1"
• Approx. Weight: 953 g per wheelset
• Brake Type: Disc Brake
• Rotor Mount: Center Lock

This wide-body version is suitable for the new BIRDY fitted with 1.25" tires.

Compared with the older narrow-rim design, the wide-body 4-spoke wheel offers better aerodynamic performance and improved tire support. The wider rim profile also helps enhance rolling performance, while giving the tire a fuller, more stable shape once installed.

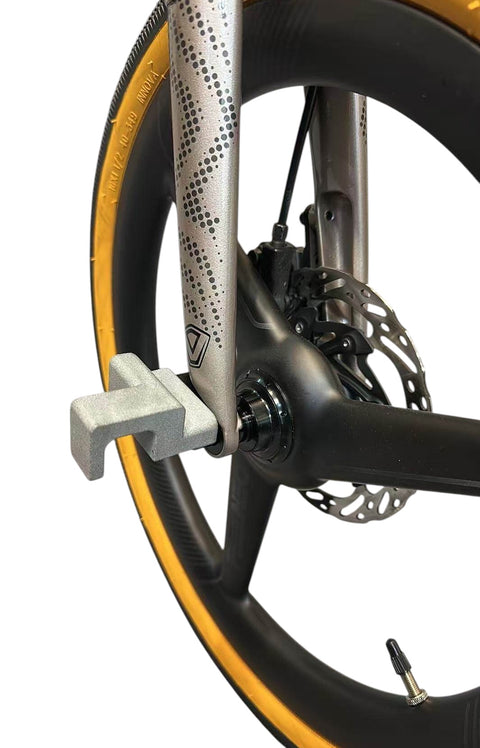

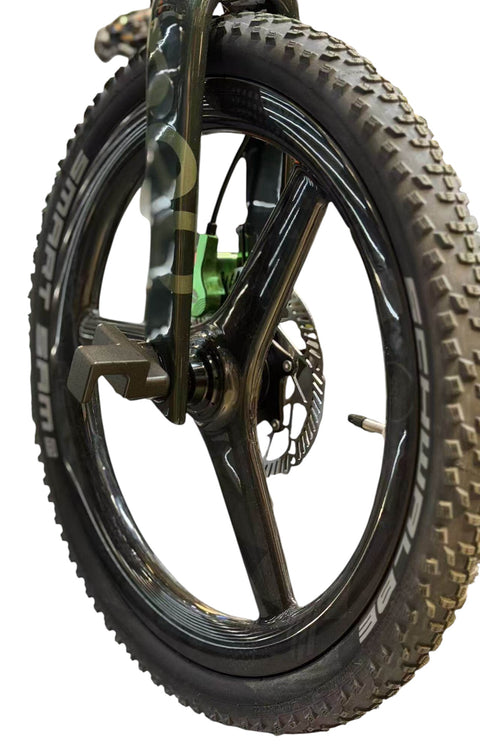

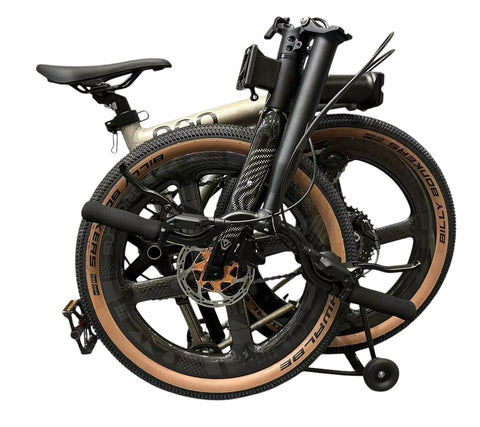

For JAVA NEO fitted with off-road tires, the original front fork E-hook must be replaced with an extended E-hook in order for the bike to fold properly.

The extended E-hook is included free of charge with the wheelset and is not sold separately.
